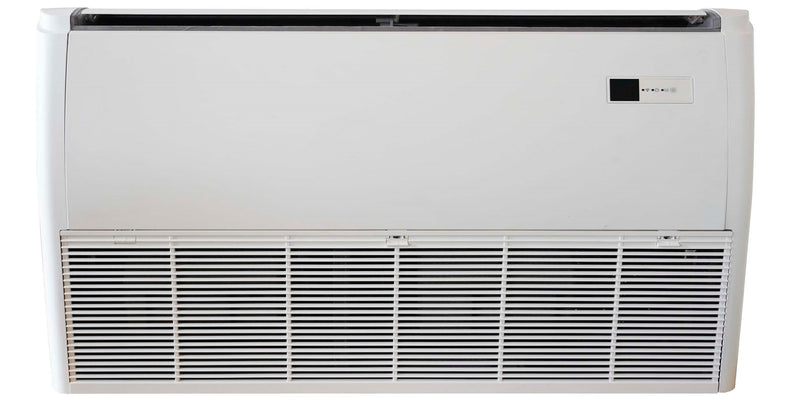

Підлогово-стельовий кондиціонер Idea IUB-18HR-PG2-DN8 | холоду до 5,6 кВт | Інвертор
Коротко про модель
| Бренд | Idea |
| ❄️ Холод / споживання | 5,3 кВт холоду при ≈1,71 кВт з розетки*
діапазон холоду 2,0–5,6 кВт · 18000 BTU · плаваюче інверторне керування ⚡ середньосезонно ≈ 0,86 кВт·год за годину роботи (розрахунково*) |
| 🔥 Тепло / споживання | 5,28 кВт тепла при ≈1,55 кВт з розетки* |
| Площа приміщення * | 51–70 м² |
| Компресор | Інверторний |
| Тип монтажу | Підлогово-стельовий |
* Підбір за площею — орієнтовний, без урахування теплових притоків. Точніше — AI-підбір або інженер.
Підлогово-стельовий кондиціонер Idea IUB-18HR-PG2-DN8/IOU-18HR-PG2-DN8 — напівпромислове рішення для приміщень орієнтовно до 53 м².
- Холодопродуктивність: до 5,6 кВт
- Теплопродуктивність: до 5,8 кВт
- Компресор: інверторний — плавне регулювання, тихіше та економніше
🔧 Монтаж — тільки інженерний: розрахунок повітророзподілу, траси, дренажу. Під ключ у Чернігові та області, гарантія на роботи до 24 місяців.
📞 Точну вартість рішення з монтажем прорахує інженер — безкоштовно: залишити заявку.
📋 Повна таблиця характеристик
| ТМ | Idea |
| Модель | IUB-18HR-PG2-DN8/IOU-18HR-PG2-DN8 |
| Тип монтажу | Підлогово-стельовий |
| Тип компресора | Інверторний |
| Номінальна потужність охолодження, кВт | 5.3 |
| Максимальна потужність охолодження, кВт | 5.6 |
| Максимальна потужність обігріву, кВт | 5.8 |
Усього характеристик у таблиці: 7. Дані з паспорта виробника.
🔧 Коди помилок цієї моделі
Для плат PG2 · модель IUB-18HR-PG2-DN8 /IOU-18HR-PG2-DN8 (codes.net.ua)
Display Indoor unit 18K~24K Cassette & Duct and Wired controller display
|
LED Display |
Error code |
Error Description |
|
Timer light flash |
E2 |
Room temperature T1 sensor error |
|
Defrost, Run, Protection light flash |
E3 |
Evaporator temperature T2 sensor error |
|
Defrost light flash |
E4 |
Evaporator outlet temperature T2B sensor error |
|
Protection light flash |
EE |
Water full filled error |
|
Run, Defrost light flash |
E9 |
Indoor unit and wired controller communication error |
|
Run, Timer light flash |
E7 |
Indoor EEPROM error |
|
Defrost, Timer light flash |
E8 |
Indoor fan motor speed loose protection |
|
Defrost, Protection light flash |
F4 |
Outside ambient temperature T4 sensor error |
|
F5 |
Discharge temperature T5 sensor error |
|
|
P9 |
Outdoor fan motor protection |
|
|
E5 |
Outdoor unit error |
|
|
FE |
Outdoor unit EEPROM error |
|
|
F6 |
Condenser temperature T3 sensor error |
|
|
P5 |
Condenser temperature T3 high temperature protection |
|
|
PA |
Anti-typhoon protection |
|
|
L1 |
DC bus over-voltage |
|
|
PE |
DC side over-current |
|
|
EF |
Mode conflict |
|
|
P6 |
Inverter IPM protection |
|
|
H6 |
3 times P4 protection (Reserved) |
|
|
H5 |
3 times P2 protection (Reserved) |
|
|
Timer, Protection light flash |
E1 |
Communication error between indoor and outdoor unit |
|
Run, Defrost, Timer light flash |
P1 |
High pressure protection |
|
Defrost, Time, Protection light flash |
P2 |
Low pressure protection |
|
Run, Time, Protection light flash |
P4 |
Outdoor discharge temperature too high protection |
|
Run, Defrost, Timer, Protection light flash |
E0 |
Three-phase sequence error |
Note: Quickly flash is 2.5Hz, slowly flash is 0.5Hz.
Display Indoor unit 36K~55K Cassette & Duct and Wired controller display
|
LED display |
Error code |
Error description |
|
|
E0 |
Phase protection |
|
Timer light flash quickly |
E1 |
Communication error between ODU and IDU |
|
Running light flash quickly |
E2 |
Indoor room temperature (T1) sensor error |
|
E3 |
Indoor coil middle temperature (T2) sensor error |
|
|
E4 |
Indoor coil outlet temperature (T2B) sensor error |
|
|
Protection light flash slowly |
E5 |
Outdoor unit error |
|
|
E6 |
Zero-cross detection protection |
|
Defrost flash slowly |
E7 |
Indoor unit EERPOM error |
|
|
E8 |
Indoor fan motor speed loose protection |
|
Protection light flash quickly |
E9 |
Indoor unit and wired controller communication error |
|
|
EE |
Water level alarm error |
Note: Quickly flash is 2.5Hz, slowly flash is 0.5Hz.
Display Indoor unit Floor & Ceiling 36K & 55K and wired controller display
|
Display |
Error description |
|
E0 |
Phase protection |
|
E1 |
Communication error between outdoor unit andindoor unit |
|
E2 |
Indoor room temperature (T1) sensor error |
|
E3 |
Indoor coil middle temperature (T2) sensor error |
|
E4 |
Indoor coil outlet temperature (T2B) sensor error |
|
E5 |
Outdoor unit error |
|
E6 |
Zero speed protection |
|
E7 |
EERPOM error |
|
E8 |
Indoor fan motor speed lose protection |
|
E9 |
Wired controller communication error |
|
EE |
Water level alarm error |
|
P0 |
(reserve) |
|
P1 |
(reserve) |
|
P2 |
(reserve) |
|
P3 |
Primary/secondary overcurrent protection |
|
P4 |
Exhaust temperature over-high protection |
|
P5 |
Outdoor unit condenser outlet (T3) temperature over-high protection |
|
P6 |
Compressor driver error or IPM protection |
|
P7 |
(reserve) |
|
P8 |
(reserve) |
|
P9 |
Outdoor unit DC fan motor error |
|
F0 |
(reserve) |
|
F1 |
(reserve) |
|
F2 |
(reserve) |
|
F3 |
Outdoor unit current error cannot recover Display P3 error for 3 times within 60 minutes |
|
F4 |
Outdoor temperature (T4) sensor error |
|
F5 |
(reserve) |
|
F6 |
Outdoor unit condenser outlet (T3) sensor error |
|
F7 |
Secondary side current protection |
|
F8 |
Heat T2 temp. protection |
|
F9 |
Outdoor unit voltage error |
|
EF |
EF(Reserve) |
|
H0 |
Communication error between outdoor unit mainboard and driver board |
|
H1 |
(reserve) |
|
H2 |
(reserve) |
|
H3 |
(reserve) |
|
H4 |
3 times of P6 error within 30 minutes |
|
H5 |
3 times of P2 error within 30 minutes |
|
H6 |
3 times of P4 error within 100 minutes |
|
H7 |
(reserve) |
|
H8 |
(reserve) |
|
H9 |
2 times of P9 error within 10 minutes |
Indoor unit LED display
|
Display content |
Error description |
|
LED timer and running flash together |
Indoor unit waiting for address assignment |
|
LED timer, running, protection, defrost flash together |
(reserve) |
|
LED timer flash quickly |
Communication error between outdoor unit and indoor unit |
|
LED timer flash slowly |
Fan motor stall protection |
|
LED run flash |
Indoor unit temperature sensor error |
|
LED protection flash |
Water level alarm |
|
LED defrost flash |
(reserve) |
|
LED protection flash slowly |
Outdoor unit error |
|
LED defrost flash slowly |
EEPROM error |
Quickly flash is 2.5Hz, slowly flash is 0.5Hz.
|
Error type |
Running |
Defrost |
Timer |
Protection |
|
Outdoor unit condenser outlet (T3) sensor error |
OFF |
OFF |
ON |
ON |
|
Outdoor temperature (T4) sensor error |
OFF |
OFF |
Flashing |
ON |
|
AC overvoltage/under voltage protection |
OFF |
Flashing |
OFF |
ON |
|
P6 protection |
OFF |
Flashing |
ON |
ON |
|
Compressor protection |
OFF |
ON |
OFF |
ON |
|
Compressor top temperature (T5) over-high protection |
OFF |
ON |
ON |
ON |
|
Outdoor DC fan motor error |
OFF |
ON |
Flashing |
ON |
|
Over current protection |
ON |
ON |
OFF |
ON |
Наружный блок 1- фазный (ODU Single phase)
Outdoor Unit 18~24K (shown in outdoor unit display board)*
|
Error code |
Description |
|
E02 |
Comm. failure between outdoor unit and indoor unit |
|
E04 |
ODU T4 (ambient temp.) sensor fault |
|
E05 |
T5 (discharge temp.) temperature sensor fault |
|
E06 |
T3 (condenser temp.) temperature sensor fault |
|
E07 |
Indoor PCB EEPROM failure |
|
E09 |
AC over-voltage / under-voltage protection |
|
E10 |
Outdoor PCB EEPROM failure |
|
E11 |
Indoor fan motor failure |
|
E12 |
IPM module temperature sensor fault |
|
E16 |
IPM high temperature protection |
|
E20~E29 |
Fan motor failure |
|
H0 |
Comm. failure between comtrol chip and comm. Chip in outdoor unit PCB |
|
H21~36 |
Compressor failure |
|
P01 |
High pressure protection |
|
P02 |
Low pressure protection |
|
P03 |
AC/DC over-flow protection |
|
P04 |
Excessive exhaust temperature protection |
|
P05 |
Excessive condenser temperature protection |
|
P06 |
IPM module protection |
|
P07 |
Anti-freeze protection |
|
P09 |
Outdoor motor stall |
|
P11 |
High evaporator temperature protection |
|
L0 |
DC compressor failure |
|
L01 |
DC cable bus low voltage protection |
|
L02 |
DC cable bus high voltage protection |
|
L04 |
MCE fault/sync/close loop |
|
L05 |
Zero speed protection |
|
L07 |
Compressor phase loss protection |
|
L08 |
Compressor stall |
|
L0A |
Frequency limitation by voltage |
|
L0B |
Frequency limitation by evaporator temp. |
|
L0C |
Frequency limitation by condenser temp. |
|
L0D |
Frequency limitation by discharge temp. |
|
L0E |
Frequency limitation by IPM high temp. |
|
L0F |
Frequency limitation by current |
Наружный блок 3-х фазный (ODU Three-phase)
Outdoor Unit 36~55K (shown in outdoor unit display board)*
|
Display |
Definition of fault or protection |
Remark |
|
E1 |
Three-phase power phase sequence fault |
|
|
E2 |
Communication fault between the outdoor unit and indoor unit |
|
|
E4 |
Temperature sensor fault |
|
|
E6 |
Condenser pipe temperature sensor fault |
|
|
E9 |
AC over-voltage / under-voltage protection |
|
|
E10 |
EEPROM fault |
|
|
H0 |
Master chip and DSP communication fault |
|
|
H4 |
Display P6 protection for 3 times within 30 minutes |
Unable to restore unless a second power-on |
|
H5 |
Display P2 protection for 3 times within 30 minutes |
Unable to restore unless a second power-on |
|
H6 |
Display P4 protection for 3 times within 100 minutes |
Unable to restore unless a second power-on |
|
H9 |
Display P9 protection for 2 times within 10 minutes |
Unable to restore unless a second power-on |
|
H10 |
3 times of P3 protection occurs within 60 minutes |
Unable to restore unless a second power-on |
|
P1 |
High pressure protection |
|
|
P2 |
Low pressure protection |
Display H5 after 3 times of P2 within 30 minutes |
|
P3 |
Primary / secondary over current protection |
|
|
P4 |
Exhaust overheating protection |
3 time of P4 protection appears within 100 minutes and then H6 occurs |
|
P5 |
High pipe temperature protection |
|
|
P6 |
Module protection |
3 times of P6 protection appears within 30 minutes and then H4 occurs |
|
P9 |
DC fan fault |
Display H9 after 2 times of P9 protection within 10 minutes |
|
P10 |
Anti-typhoon protection |
|
|
P11 |
Refrigeration T2 overheating protection |
|
|
L0 |
DC compressor module fault |
|
|
L1 |
DC bus low voltage protection |
|
|
L2 |
DC bus high voltage protection |
|
|
L4 |
MCE fault / sync / closed loop |
|
|
L5 |
Zero speed protection |
|
|
L7 |
Phase sequence error protection |
|
|
L8 |
15Hz protection |
|
|
L9 |
Hz Protection |
